the artnet-receivers for uDMX were tested with several programs. receiver programs have to be configured in a different way depending on the sending software, but receiving always works ...
The settings of the sending programs are described below

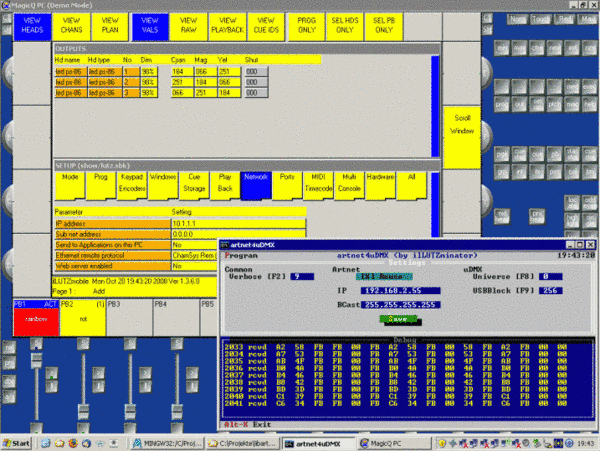

Setting the settings like here should lead to success:
- IP address: one of the ip addresses of the computer
- Sub net address: 0.0.0.0 (Sends to all network interfaces)
- Send to Applications on this PC: Yes

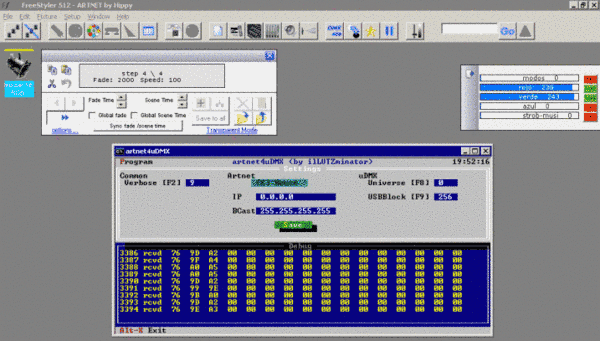

There is no possibility to set the network address in Freestyler. If you dont have an ip address like 10.x.y.z, you should install OpenVPN and set the TAP-adapters address to 10.x.y.z.
Freestyler has to be started before starting the artnet receiver software

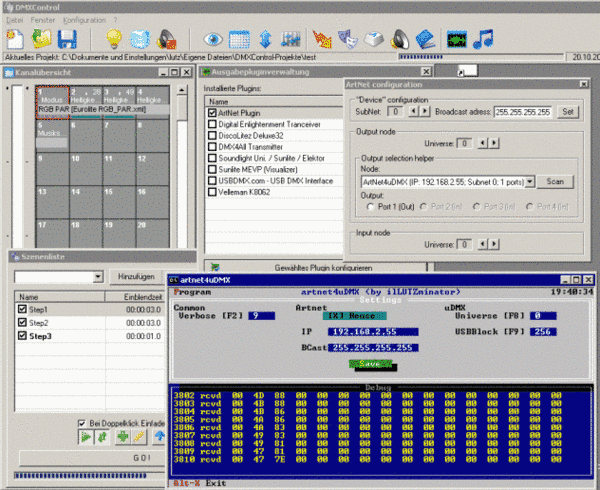

DMXControl allows to set the subnet. Set it to 255.255.255.255. Then artnet-data are sent to all network interfaces.
DMX-Control sends artnet-data - according to the Artnet-spezifications - only after 4 seconds if the data do not change. So be patient while waiting for an output.

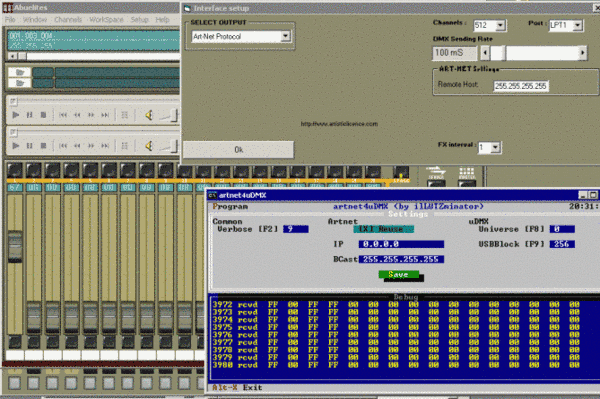

There is a dialog to set the ip address or subnet. Setting it to 255.255.255.255 should work.

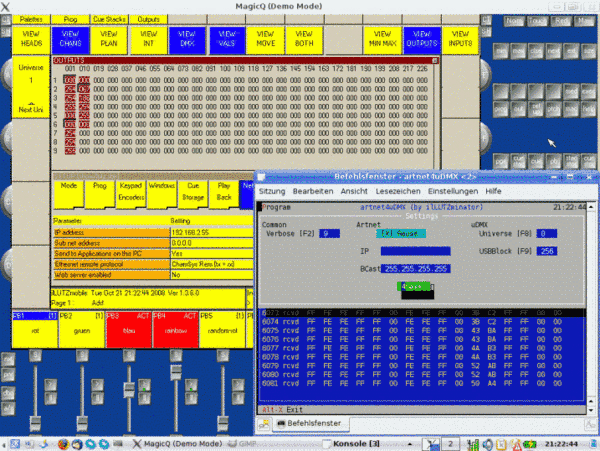

All combinations as screenshot
